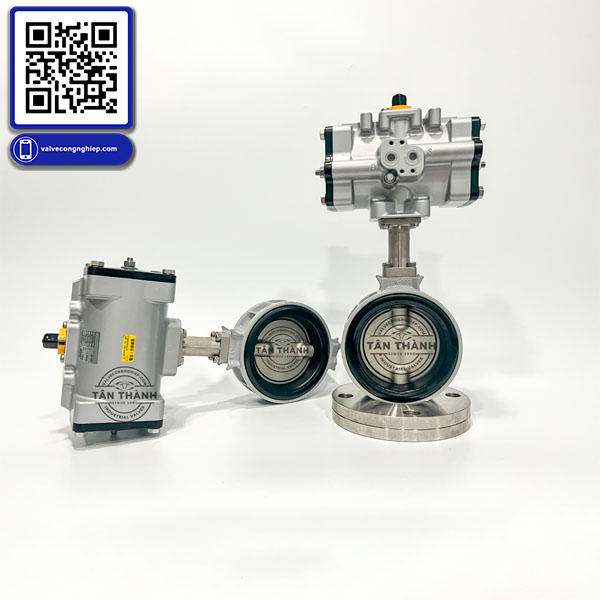

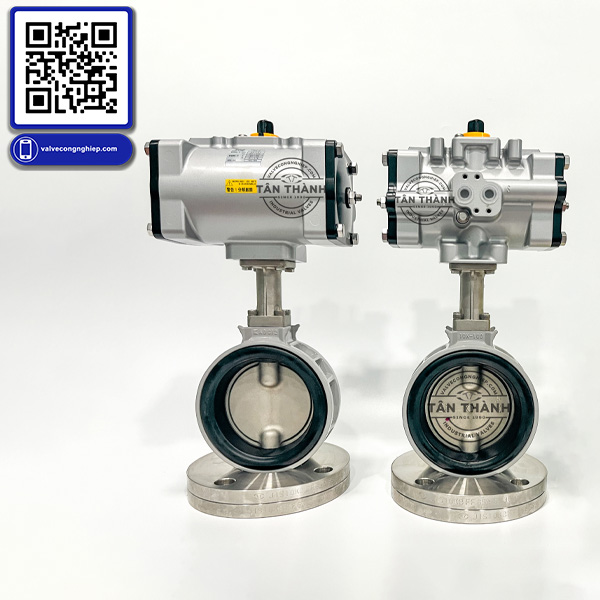

PNEUMATIC ALUMINUM BUTTERFLY VALVE FA-10XJMEA KITZ
Mô tả:
Valve Type: Butterfly valve
Brand: Kitz
Material: Aluminium, Aluminium, Stainless steel
Origin: Japan, Thailand
Connection: Wafer type
Operation: Pneumatic
Reasons why the Kitz FA-10XJMEA pneumatic aluminum butterfly valve is one of the most widely used butterfly valves in Vietnam. Let’s explore this FA-10XJMEA model together with Tân Thành Industrial Equipment Company.
What is the FA-10XJMEA pneumatic aluminum butterfly valve?
The Kitz FA-10XJMEA pneumatic aluminum butterfly valve is a type of butterfly valve that uses compressed air to remotely open and close the valve through a pneumatic actuator. Instead of manual operation via lever or gear handle, this valve utilizes air pressure for actuation.
The pneumatic butterfly valve model FA-10XJMEA is ideal for systems with available air supply, especially where the medium is flammable gas or coal gas. The actuator can be selected as double-acting or single-acting type, and the valve can be configured as normally open or normally closed.
Technical Specifications of Model FA-10XJMEA
Below is the specification summary of Kitz butterfly valve model FA-10XJMEA:
Type: Double Acting Pneumatic
Brand: Kitz Japan
| Connection | Flanged JIS10K FF / ANSI Class 150 RF | |||
| Material | Body | Shaft | Disc | Seat |
| Cast Aluminum | SUS410 | SUS316 | EPDM | |
| Temperature | Max 120°C | Pressure | Max 1 MPa | |
| Valve Size Selection | ||||
| 10XJMEA | DN40 | DN50 | DN65 | DN80 / DN100 |
| Actuator | FA-1 | FA-1 | FA-2 | FA-2 / FA-2 |
| 10XJMEA | DN125 | DN150 | DN200 | DN250 / DN300 |
| Actuator | FA-3 | FA-3 | FA-4 | FA-5 / FA-6 |
Operating Principle of the Double Acting Pneumatic Butterfly Valve
When compressed air is supplied to port A of the double-acting pneumatic butterfly valve ,the air pressure pushes the pistons outward in a counterclockwise direction, causing the valve to open. When air is supplied to port B, the pistons move inward in a clockwise direction, causing the valve to close.
Advantages of the Pneumatic Aluminum Butterfly Valve
The pneumatic aluminum butterfly valve is among the most commonly used industrial valve types today.
Key advantages include:
- Very fast opening and closing speed (½ to ¼ second)
- Resistant to moisture and explosion hazards
- Long lifespan of the double-acting actuator
- Affordable price – much cheaper compared to pneumatic ball or globe valves
- Compact and lightweight design makes installation and replacement easy
- High sealing performance, excellent corrosion resistance, and diverse seat materials
- High safety and reliability during operation
- Can be used in various working media depending on valve selection
- Greatest advantage: replaces manual labor with automatic air control
Where to Buy Genuine Kitz FA-10XJMEA Butterfly Valves at the Best Price
Tân Thành Industrial Equipment Trading Co., Ltd. is proud to be a leading supplier. With over 13 years of experience, our team of engineers will help you choose the most suitable Kitz FA-10XJMEA butterfly valve model.
Contact Information:
TAN THANH INDUSTRIAL EQUIPMENT CO., LTDNo. 1 Dong Ho Street, Tan Hoa Ward, Ho Chi Minh City, Viet Namhttps://valvecongnghiep.com/
We hope this overview of the genuine Kitz FA-10XJMEA pneumatic butterfly valve from Japan is helpful to you. At Tân Thành company, we are currently offering special discounts on the butterfly valve FA-10XJMEA model this 08/2026.
Call our hotline at 028 3866 5295 | 0904 635 106 to get the best offer now!
